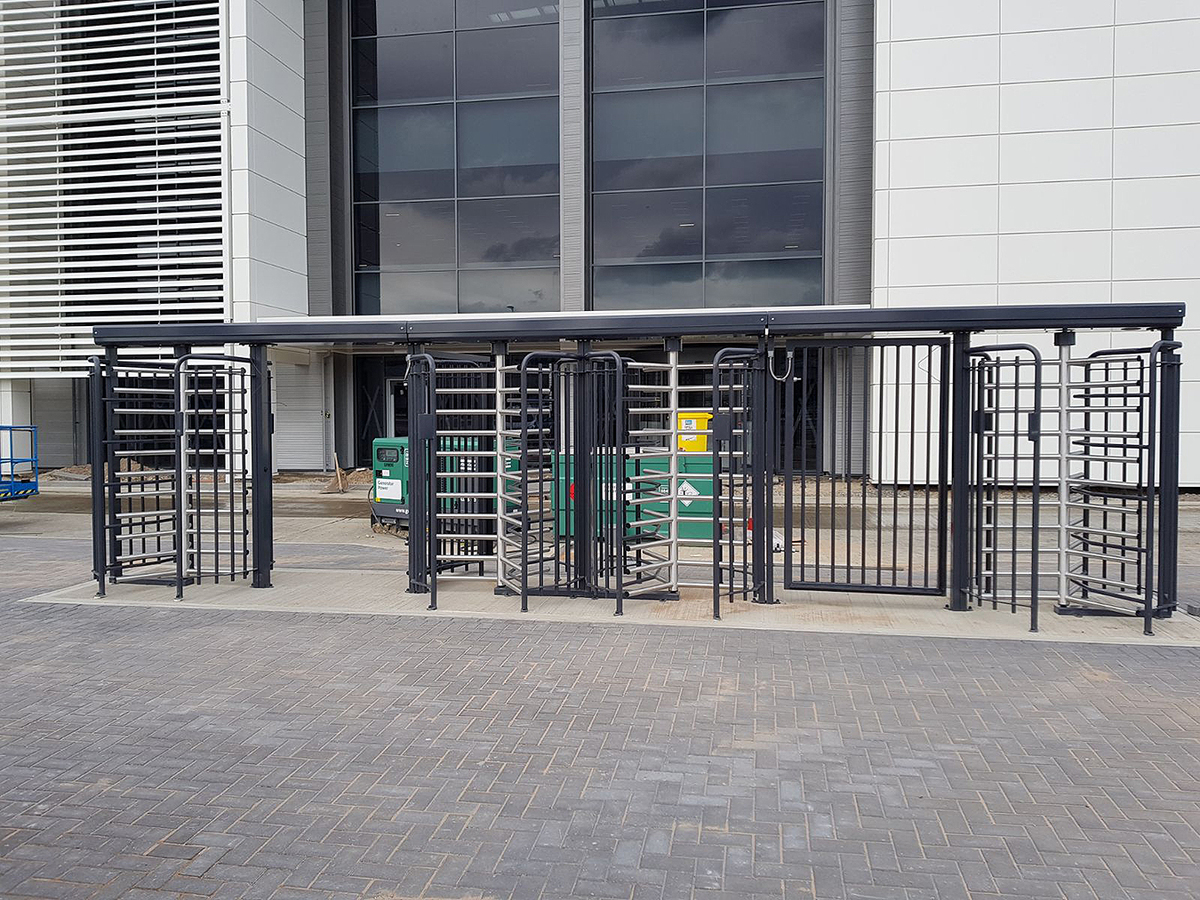

Full Height Turnstile

The use of a full height turnstile has become increasingly popular in public and commercial areas where there is a need to control footfall. Establishments such as stadiums, theme parks, and public buildings are adopting this simple innovation to help control the speed of access and even keep count. Being able to track the number of patrons at a venue is particularly helpful when there are restrictions on occupancy due to such issues as fire hazards. Turnstiles only allow one person through at a time, making it easy to keep track.

They can be used in conjunction with many other access control systems including card readers, token acceptors, and biometric fingerprint scanners. It can also be customised to turn in specific directions – clockwise, anticlockwise, or bi-directional. This can help control the direction of traffic as needed. We also offer the option of either straight arms, or trombone style. The use of mild or stainless steel in construction and epoxy primer finishing is not only strong but also weather-resistant, making the use of this turnstile suitable in even wet outdoor conditions.

Other bespoke features that are available at additional cost include fire alarm activation, canopy, LED down lights, and directional indicators. This structure does not require assembling as it comes fully constructed and ready for immediate installation. It can also be customised in terms of colour. We offer a good selection of RAL colours to choose from or customising of corporate colours if desired.

This turnstile also comes with a manual key switch override which can allow free entry or exit whenever needed. Its modern design makes it easy to use and convenient. We also offer this full height turnstile with an option of single or double alternatives. It can also be coupled with a pedestrian gate. These additional features are a good consideration when capacity is an issue.

Technical Information

Specifications

• CE Approved - Force Tested to 1200Newtons
• Flow Rate - 15 to 22 person per min in single direction
• Material - Mild steel

• Finish - Epoxy Primer & Polyester powder coated Frame & rotor can be coated in any standard RAL (Galv also on request, extra), Select your colour from Option menu

• Power Requirement - Single phase 220Volt 50Hz 5 Amps
• Dimensions Single - 1280mm x 1400mm x 1790mm
• Dimensions Double - 2580mm (2450) x 1400mm x 1790mm
• Duty Cycles - 100% Continuous Duty Rating
• Rotor Size - 76mm Ø tube with bottom support bearing
• Arm Size - 42mm Ø tube with capped ends
• Side Frames - 33mm Ø tube welded to curve base plate
• Fixing Bolts M12 X 100 incl as standard

Constraints - The turnstile and peripheral pedestrian gates will comply with regional acts of law in regard to equality and disability discrimination

Safety - The turnstile can be fitted with an anti-trap plate. This plate although not needed helps avoid injury to the feet during transit

Control Components - PLC Control Panel, 3 Amp Power Supply, , Quality German Solenoids for long term use & Hardened Steel Head Mechanism components

PRICES FOR INSTALLATION (WHERE QUOTED) ARE BASED ON ANY REQUIRED CABLING/DUCTING FOR MAINS POWER SUPPLY OR SIGNAL CABLE AND ALL EXCAVATIONS OR CONCRETE FOUNDATIONS BEING PROVIDED BY OTHERS.
