Arm Barrier Automatic - Versatile (up to 6m) c/w Safety Edge & Lights - INSTALLERS FAVOURITE!

£ 2,560.73 inc. VAT £ 2,133.94 exc. VAT

Let us help pick the best one for your needs ring us on

01256 597 778 or email at [email protected]

We will be delighted to help

Product Total

£ 2,560.73 inc. VAT £ 2,133.94 exc. VAT

FREE DELIVERY Within Great Britain

You could have this delivered by Thu 06 Jun

Made to Order

Made to Order - non refundable please see terms and conditions

Bulk Discounts

  • 5% off order 2 + units £2027.24 exc. VAT
  • Discounts only apply to multiples of the same product, and exclude accessories.

We like this because

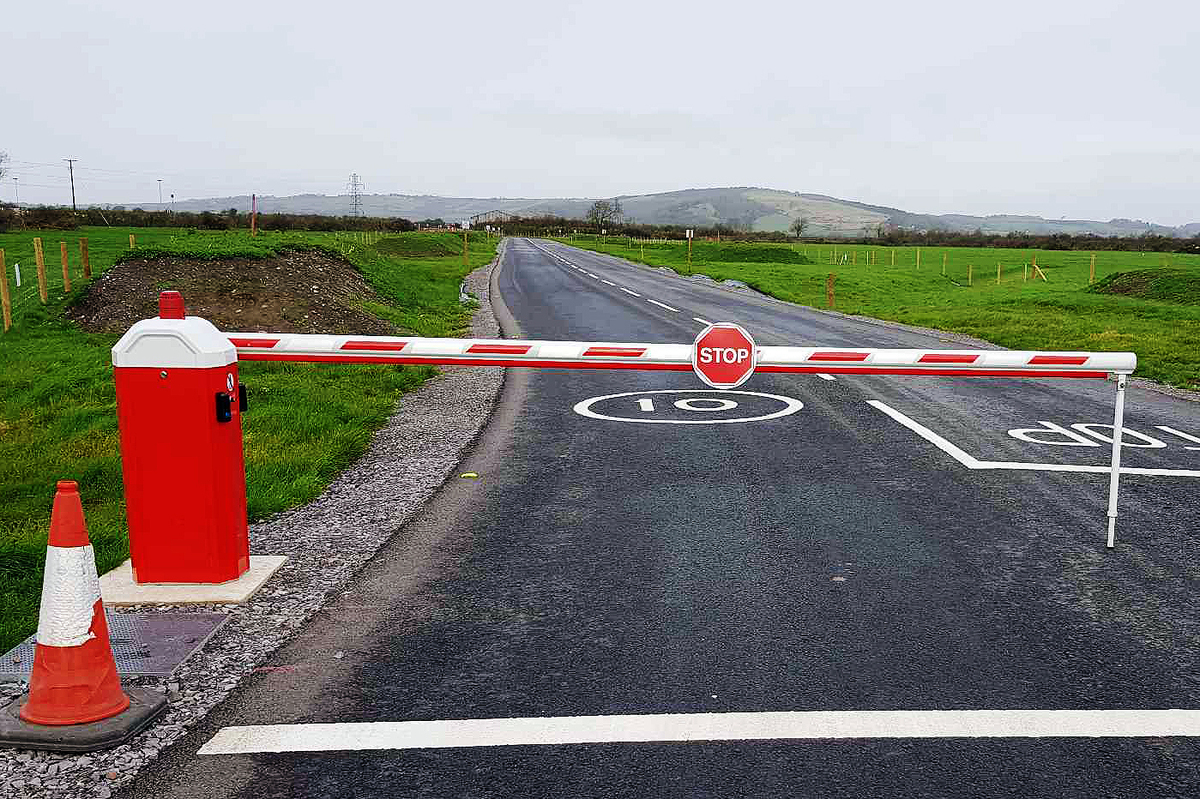

Automatic Rising Arm Barrier



Car park barriers provide secure access to cars entering your site. Installing an automatic barrier is perfect for residential and commercial areas because it ensures that cars enter and exit your site safely and efficiently. An electric barrier offers a more controlled entrance than a regular barrier. They are easy to install and come with a number of added benefits.

Our Automatic Raise Arm Barriers provide an effective and long-term security solution for residential, business, and industrial premises. This car park barrier is an excellent vehicle control mechanism for entranceways, driveways, and car parks. The automatic barrier pole can be customised to a length of between 3-6 metres, allowing for their comfortable use in varied locations. This arm can be supplied in a variety of RAL colours or striped designs to suit the premises.

The unit houses a motor and two-stage gearbox direct drive. The single-phase power supply ensures an easier and affordable installation of this car park barrier system. It can interface with unlimited access control options such as keypads, remote control fobs, token acceptors, and intercom systems. This can help save costs as the car parking barriers do not need to be manned, or even constantly monitored remotely, depending on the type of security system you have in place.

Its heavy-duty aluminium construction makes it ideal for outdoor use and provides ample protection for internal parts even during wet conditions. Even in the event of a power failure, these car park barrier systems can be manually overridden to allow continued access. However, unlike fully manually controlled barriers, these car park barriers do not require springs or a counterweight to shift them into upright or closed positions.

Our team at Barriers Direct offers this product with a range of extras to enhance its functionality. These are helpful for car park barriers that are used at night or in dark enclosed spaces like underground parking. The boom can also be supplied as an articulated arm for use where low ceilings may result in contact. We can also provide height restriction, ‘No Entry' and ‘Stop' signages. For the most comprehensive car park barrier entry systems, do consult our listing of accessories.

Technical Information

Specifications

  • Maximum Boom Length - 6.0 Metres (approx 5.4m drive through gap)
  • Opening / Closing Time - 2.0 - 6.0 Seconds (Adjustable)
  • Drive Unit - 3 Phase Motor & Wormed Gearbox
  • Power Supply - SINGLE Phase 230v 50Hz 10.0Amps
  • Finish - Powder coated Aluminium
  • Cycles - 100% Continuous Duty Cycle Rating
  • Control Panel - Programmable logic controller
  • Boom Diameter - 86mm x 60mm Oval
  • Dimensions - 436mm x 433mm x 1135mm
  • Ambient Humidity - -10 ~ 60 Degrees Centigrade
  • Control Panel IP Rating - IP65
  • Fixings - M12 Anchor Shield Bolts Included

IMPORTANT: Please download and view ‘Product Documents’ from link below for foundation specifications required

Product ID: 581

Product Description

With ultimate flexibility to suit your needs, these Barriers have been designed to offer long-term reliability, durability and a smooth, consistent operation.

These Automatic Rising Arm Barriers are one of our installer’s favourite barriers and are suitable for use in residential & commercial applications.

  • 6m pole included which can be cut down to size
  • LED pole lights included
  • Safety edge supplied as standard
  • Can be used with many access control options
  • Folding Bottom Skirt up to 4m
  • Single Phase 230V, 10amp supply, using built-in inverter for 3 phase motor
  • Motor & two stage gearbox direct drive
  • Adjustable speed, acceleration and deceleration
  • No springs or counterweights required
  • Heavy duty limit switches
  • Programmable Logic Control c/w fault diagnostic on-screen display
  • 100% duty cycle
  • Manual override in case of power failure
  • Comes complete with M12 x 100mm anchor shield bolts
  • Full manufacturer support and service available
  • Barriers must be bolted to concrete
  • Not suitable for marine environments

NOTES

INSTALLATION AVAILABLE. IF REQUIRED PLEASE ASK FOR A QUOTE SPECIFIC TO YOUR NEEDS

If you require any additional parts, spares or replacements please call our Automatic Barrier Sales Team on 01256 597 778

Warranty Information

This product comes with a 1 year warranty as standard

Product Documents

Information about installation

www.barriersdirect.co.uk/info/installation

  • Credit Card
  • BACS bacs
  • PayPal
  • Instant Credit - Local Authorities & Schools Instant Credit
  • Pro forma Invoice
  • Company Credit Account

100% Customer Rating for this product from 1 review
