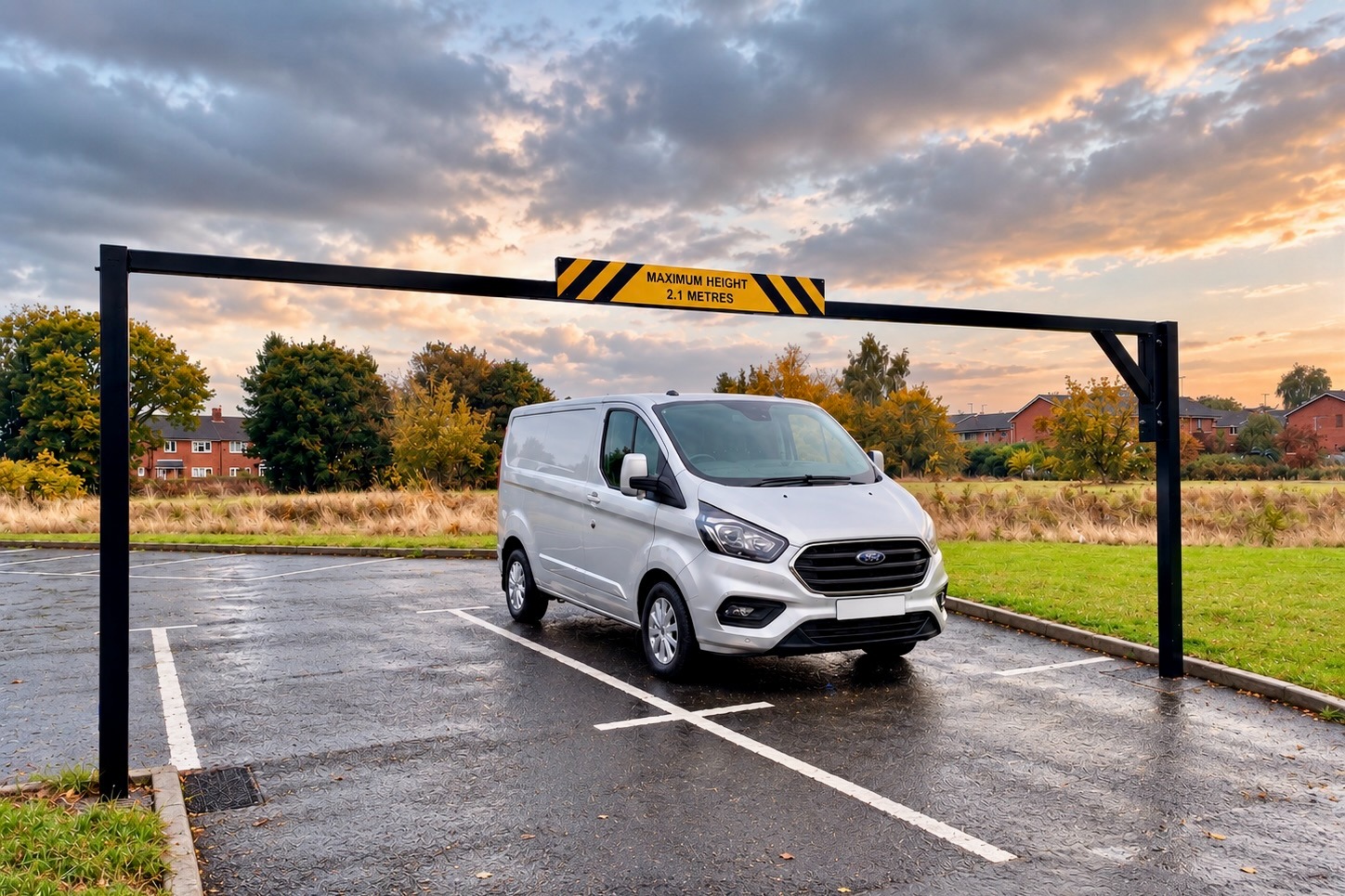

An ideal solution for the control of access to unauthorised areas such as staff or public car parks. Height Restrictors are designed to restrict access to high sided vehicles such as HGV’s and caravans. Swing height restrictors can be used where occasional entrance by high sided vehicles may be required for deliveries or refuse collections etc.

• This barrier is a reliable and robust. It’s an ideal solution to prevent unauthorised access to higher vehicles to areas such as car parks, shopping centres or recreational grounds.
• Complete with locking facility the opening crossbar allows the option to give access to larger vehicles when required. Manufactured from 100 x 60mm box section, this single leaf, heavy duty design is available from 3 to 6 metres.
• The barrier uprights are manufactured from 100 X 100mm steel box section and have the option to be a sunken fixture (concrete in) or surface mounted (bolt down). Please note, we recommend the concrete in option.
• As standard it is powder coated however, a galvanised or double finish (Galvanised and powder coated) is available at extra cost. Please note double finish will extend lead time by 5 to 7 working days.
• This single leaf barriers is supplied with a heavy-duty self-locking padlock facility (padlock not supplied).
• Additional (Catch) latch back post is recommend & purchased with the barrier to enable the barrier to be secured when in the open position.
• Can be used in conjunction with the Fixed version

• Uprights: 100 x 100 x 3mm Box Section
• Crossbar: 100 x 60 x 3mm Box Section
• Concrete In: 760mm Below Ground
• Bolt Down: Holes are 16mm diameter, fixings not supplied
• Gate has 180 degree opening: Depending on hinge post positioning
• If ordering signage: Height chosen will be applied eg. 2.1 Metres selected, signage will read "Maximum Height 2.1 Metres"
• Lock Shrouds: Will be manufactured on to the closing post as standard
• Nudge bar Depth information: It is designed to hang 100mm below the Horizontal Top Rail Bar & is in depth 100mm so this in total is 200mm.

How to Choose the Right Barrier Size:

• Measure the Opening Length/Width: Use a tape measure to determine the exact length/width of the opening you want to fill with the barrier.

• Go to "Size & Finish Selection": Choose the pre-sized option that best suits your measured width.

• Bespoke Sizing: If you need a custom size:

• Select the next size up from your measured length/width.

• During checkout, in the "Special delivery, access, or unloading requirements" box, specify the exact size you need in millimetres.

• If you forget this step, contact our support team for assistance at at 01279 933019 (Mon-Fri, 09:00 - 16:45, excluding bank holidays).

• Warranty: This product comes with a 1 year warranty as standard
