Product Description

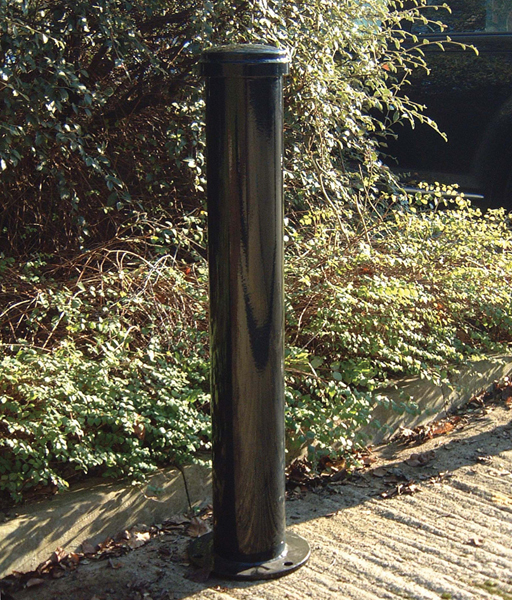

The GFC9000i is designed with a classic appearance, and made with robust material, a product to suit most architectural designs. This illuminated bollard is suitable for pedestrian walkways, squares, gardens, marinas, forecourts and all 24 hour public areas from hotels to supermarkets.

• The head unit has been tested and rated IP54, against solid objects and liquid ingress, the rating means it is protected against dust with limited ingress (no harmful deposits), and protected against spray from all directions, with limited ingress permitted.
• Conforms to BS EN 60598 - 1:2004
• Luminaries - Part 1: general requirements & tests
• Black finish as standard
• Available ragged for casting in only
• CE marked
• Diameter of lens: 150mm
• The GFC9000i is made from 5mm thick steel tube galvanised and powder coated
• Black as standard
• The head unit is made of a steel cap, with 3mm thick polycarbonate lens
• The louvre stack is made from individual aluminium fans, positioned to give a controlled spread of light
• A 70W SON-E lamp is used which is accessed via 1 tamper proof screw and positioned on the bollard core through a bayonet style lock
• A 'dummy' version - the GFC9000 - is also available extra to match the illuminated GFC9000i

A technical file containing all test results, approvals, conformances and light dispersal patterns is available on request.

Installation

This product is supplied with full fitting instructions.

Warranty Information

This product comes with a 1 year warranty as standard

Technical Information

Specifications

• Height Above Ground - 1000mm
• Tube Diameter - 114mm
• Diameter of Lens - 150mm
• Lens Material - 3mm thick polycarbonate
• Tube Material - Mld Steel
• Finish - Galvaised & Powder Coated
• Colour - Black (Other Colours available to order)
