Cantilever Sliding Gate Automatic (Electric) - COMMERCIAL USE - Great Price!

£ 8,112.00 inc. VAT £ 6,760.00 exc. VAT

Need help?

Call us on

01256 597 778

Product Total

£ 8,112.00 inc. VAT £ 6,760.00 exc. VAT

Free Delivery Within Great Britain

You could have this delivered by Mon 08 Jan

In Stock

Technical Information


  • Power requirement - Single Phase 240v 50Hz 10 Amps
  • Maximum height - 3.0 metres (maximum width 6.0 metres)
  • Duty cycle - 100% Heavy Industrial Usage
  • Operation time - 3-6 seconds approx. Will vary dependents on size of gate and infill etc.
  • Material - Gate Leaf and Main Tower - Aluminium
  • Material - Tower Top/Base plate Wheel Carriages - Zinc Plated Steel
  • Weight - 600Kg Approx. Will vary dependent on size of gate and infill ETC.
  • Fully fitted with 6 Category 3 monitored live safety edges

Product ID: 47436

Product Description

These Automatic Cantilever Sliding Gates are an ideal solution where space behind the gate/s is on an incline or restricted.

With fully automated action and a wide range of access control options (please call our sales team on 01256 597 778 for full details) these gates are suitable for a wide range of applications including commercial and industrial use. They also offer higher security than rising arm barriers.

This automatic cantilever gate has a manual release mechanism concealed within the lockable housing unit, allowing manual control of the gate in the event of a power failure. To aid in the safety aspect of the automatic cantilevered sliding gate, the portal is fitted with dual-height photo cells and rubber profile safety edges.

  • Suitable for Indoor & Outdoor Usage
  • Fully fitted with 6 safety edges
  • Fully fitted with 2 pairs of safety cells (cable not included)
  • Power Requires - 230v, Single Phase, 50Hz, 10 Amps
  • In built programmable logic controller
  • Programmable parameters such as gate speed, passage timeout and opening times
  • Complete with a rear floor mounted support roller which supports the gate when fully open
  • Manufactured from Hi-grade Aluminium
  • Default speed settings at factory are set to pass a force test
  • BS/EN 12453 Compliant
  • CE Approved
  • Various access controls and pedestals available, please call us for details on 01256 597 778.

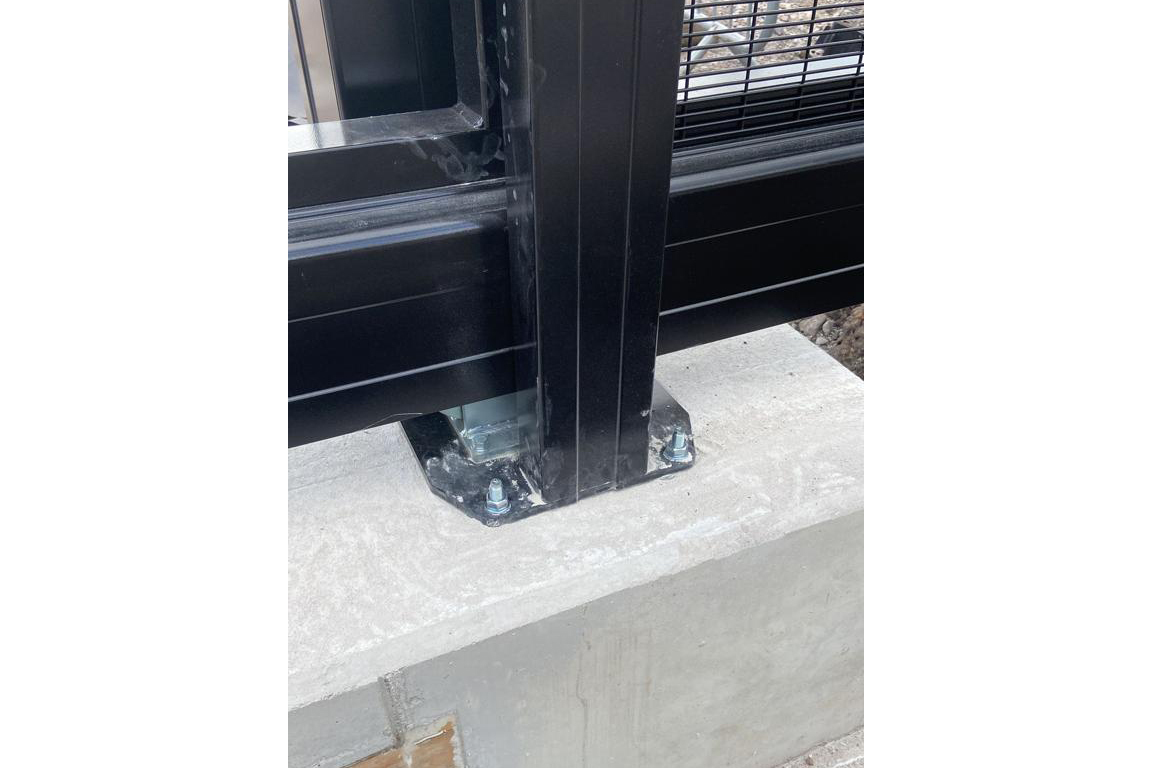

  • Delivered as a complete unit by a Hi-Ab vehicle and lowered on to pre-installed concrete plinths - Delivery is not free please CALL 01256 597 778 for a quotation.

Bespoke Service

From design to manufacture, we can supply a custom built gate to your specifications. You can choose;

  • Colour – Frame and Leaf can be different colours for no extra charge
  • No spikes or spikes, no extra charge for spikes
  • Variety of infill options included in the cost but it there’s something else you prefer we may be able to accommodate.
  • Gate sizes from 1.8m – 2.4m high. If you are looking for a different height please ask.
  • Left or Right Handed gates available as well double leaf gates.

If you cant find the exact finish or style that you are looking for, please call our Product Specialists on 01256 597 778 or email [email protected]


Warranty Information

This product comes with a 1 year warranty as standard
