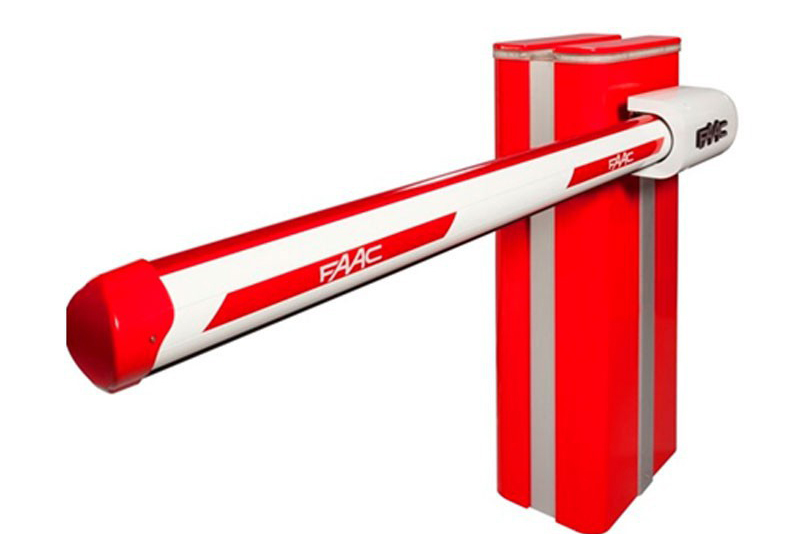

Automatic Arm Barrier - Heavy Duty FAAC B680H - 5m to 8m

£ 3,822.00 inc. VAT £ 3,185.00 exc. VAT

Let us help pick the best one for your needs ring us on

01256 597 778 or email at [email protected]

We will be delighted to help

Product Total

£ 3,822.00 inc. VAT £ 3,185.00 exc. VAT

FREE DELIVERY Within Great Britain

You could have this delivered by Mon 08 Apr

Standard Delivery

Bulk Discounts

  • 5% off order 2 + units £3025.75 exc. VAT
  • Discounts only apply to multiples of the same product, and exclude accessories.

Technical Information

Specifications

  • Foundations for cabinet: C40 concrete - 700 x 700 x 700mm
  • Foundations for bolt down end rest: C40 concrete - 350 x 350 x 350mm
  • Ducting required for all cables: 50mm
  • Cable required for most keypads: Cat5 8 core, alarm cable or equivalent volt free cable.
  • Cabinet Dimension: 1100 x 470 x 436mm (HxWxD)
  • Cabinet weight: 85kg
  • Pole dimension: 109 x 85mm (oval)
  • Bolts:
  • IP Rating: IP44
  • Speed:
  • Operating temp: -20 - 55C
  • Variations: 5m, 6m, 7m, 8m

Product ID: 36057

Product Description

The FAAC B680 Automatic Arm Barrier uses a combination of hydraulics and springs to provide long term reliability, even in busy environments – tested for over 2 million cycles of continuous use.

With two loop detectors built in, obstacle detection via the encoder and options for lights available, these barriers are designed to offer a safe solution to your traffic management needs.

We offer a wide range of access control solutions to combine with these barriers in order to give a solution which is tailored to your needs.

Features

  • Widths available: 5m, 6m, 7m and 8m
  • Type: Spring and Hydraulics
  • Power supply: 230V 10A Single phase
  • Duty cycle: 100%
  • Safety features: Encoder based obstacle detection
  • Lights: Pole light strip and Cabinet Light options available
  • Skirting: Available up to 7m
  • Material: Galvanised Steel Cabinet and Aluminium Pole
  • Cabinet colours available: Red, Blue, Grey, White
  • Pole colours: Red & White striped
  • Manual override:

INSTALLATION AVAILABLE. IF REQUIRED PLEASE ASK FOR A QUOTE SPECIFIC TO YOUR NEEDS

INSTALLATION SHOULD ONLY BE ATTEMPTED BY SOMEONE WITH APPROPRIATE EXPERIENCE. TELEPHONE-BASED SUPPORT IS AVAILABLE BUT IF AN ENGINEER IS REQUIRED FEES WILL APPLY

ALL COMPONENTS AND ACCESSORIES LISTED ON THIS PAGE MUST BE ORDERED AT THE TIME OF THE MAIN BARRIER.

FOR SPARES AND REPLACEMENTS PLEASE CONTACT OUR AUTO SALES TEAM

Warranty Information

This product comes with a 2 year warranty as standard

Product Documents

Information about installation

www.barriersdirect.co.uk/info/installation

  • Credit Card
  • BACS bacs
  • PayPal
  • Instant Credit - Local Authorities & Schools Instant Credit
  • Pro forma Invoice
  • Company Credit Account

100% Customer Rating for this product from 1 review

  • 5 star

    "very , very good barrier, looks good works well"

Automatic Arm Barrier - Heavy Duty FAAC B680H - 5m to 8m

£ 3,822.00 inc. VAT £ 3,185.00 exc. VAT

Express Delivery
Now In Stock
Bolt Down
Warranty

Please select from below

View Varations

barrier inc cabinet, pole, dual loop detector & obstacle detection

barrier colour selected

lighting selected

end rest selected

safety cells selected (recommended by barriers direct)

View Accessories

accessories (price per unit)

Skirting - Bottom 2m Kit
£ 220.60
Skirting - Bottom 3m Kit
£ 309.10
Hi-Bar - Top and Bottom Skirting - 5m kit (5m max pole length)
£ 1,675.52
Warning Sign 305mm - NO ENTRY - Arm Mounted
£ 43.80
Warning Sign 305mm - NO EXIT - Arm Mounted
£ 43.80
Warning Sign 305mm - STOP - Arm Mounted
£ 39.30
Warning Sign 305mm - NO PEDESTRIAN - Arm Mounted
£ 43.80
Safety Cells (Pair) for Offset or Secondary Cells
£ 103.00
Loop Wire - (Tarmac & Concrete) 100m
£ 84.70
Radio Control Receiver Board and Decoder + Aerial (approx 20m range)
£ 59.20
Radio Control Antenna (line of sight approx 100m range)
£ 35.50
Radio Control Transmitter - Black
£ 37.40
Push Button Control (raise/stop/lower+ Emergency Stop)
£ 62.50
Key Switch - Standard (Auto-Hold Open)
£ 75.10
24/7 Timer (6 Events)
£ 187.00
Proximity Tag Reader - Stainless Steel
£ 158.00
Proximity Tag Reader
£ 108.00
Proximity Tags
£ 4.06
Key Pad - 30 Code Stainless Steel Vandal Resistant
£ 236.00
Token Acceptor Unit (Bolt Down)
£ 614.20
Tokens
£ 0.54
Battery Back Up (30 x Cycles)
£ 147.20
Traffic Lights 120mm Lens R/G + Mounting Bracket for 60mm Dia Post
£ 281.37
Intercom - 1 button 2 way audio - wired
£ 161.56
Intercom - 1 button 2 way audio - wired - vandal resistant
£ 307.55
Intercom - 1 button 2 way audio - GSM
£ 874.69
Intercom - 1 button 2 way audio - GSM - vandal resistant
£ 1,190.33
